01 / Overview
Two linked studies

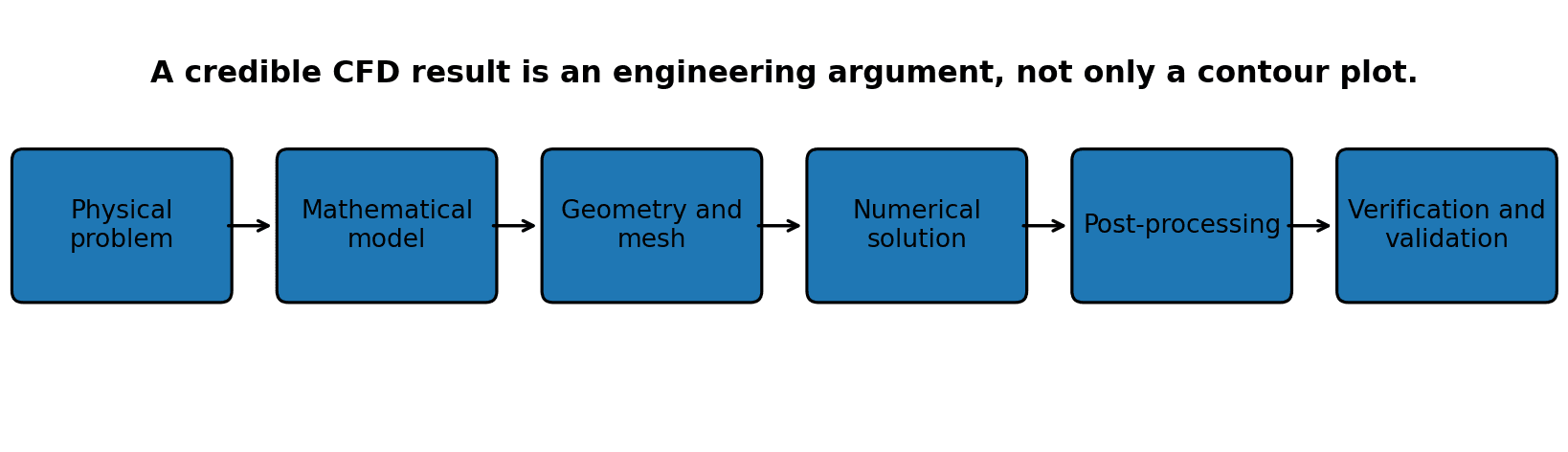

A CFD result only means something if you can show why it should be believed. This project is two linked studies in ANSYS 2026 R1, developed alongside CornellX's ENGR2000X simulation course on edX, and both are built around that argument.
The first is a two-dimensional steady RANS solution over a NACA 0012 aerofoil at 10° incidence and a chord Reynolds number of 6×10⁶. The case was chosen because high-quality NASA experimental data exists for it, so the full verification and validation argument can be carried to the end. The second study is the larger one: a three-bladed horizontal-axis wind turbine solved as a one-way coupled fluid-structure interaction, where a rotating-frame CFD solution provides the pressure field that loads an orthotropic composite shell model of the blade.

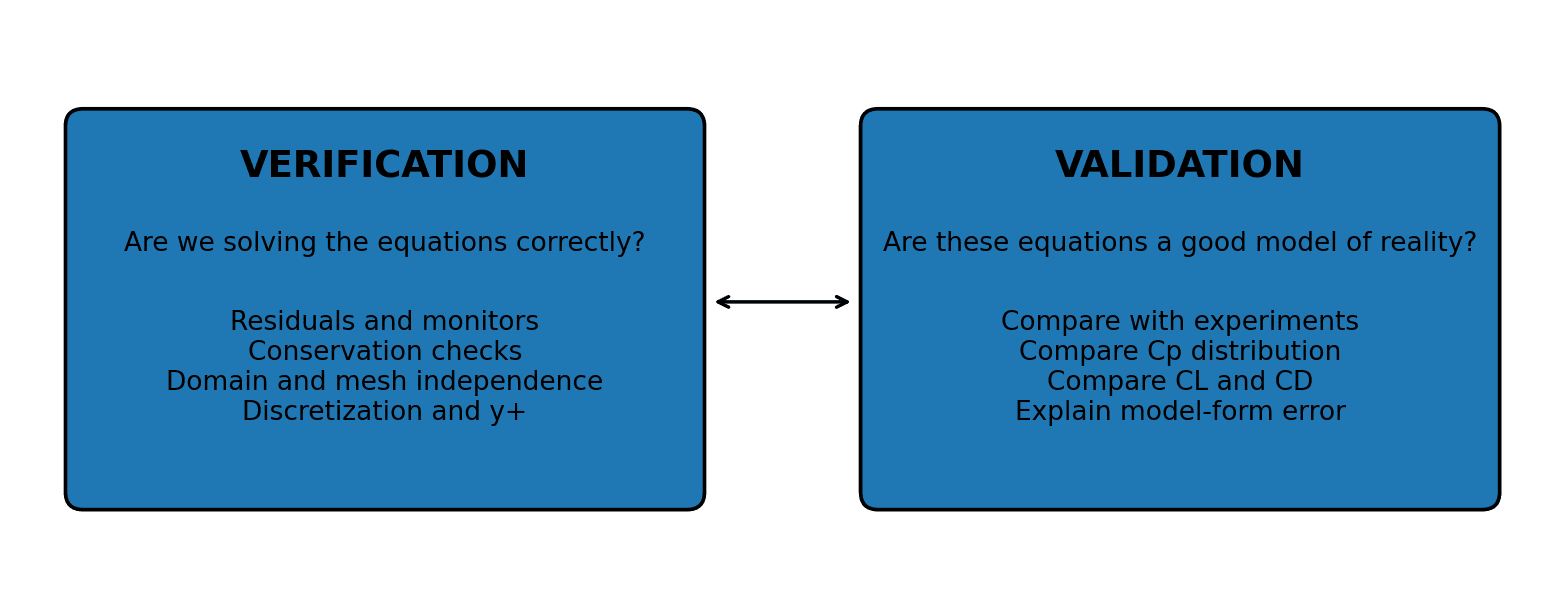

Note the ordering of the last two steps. Verification comes before validation, and it is not optional: comparing an unverified solution against experiment tells you nothing useful. If it disagrees you cannot tell whether the physics model is wrong or the mesh is too coarse; if it agrees you cannot tell whether it agreed for the right reason.
02 / Setup
The physical problem and its domain
The case is steady, turbulent, two-dimensional flow around a symmetric NACA 0012 section at 10° angle of attack, with a 1 m chord and air approaching at 51.45 m/s.

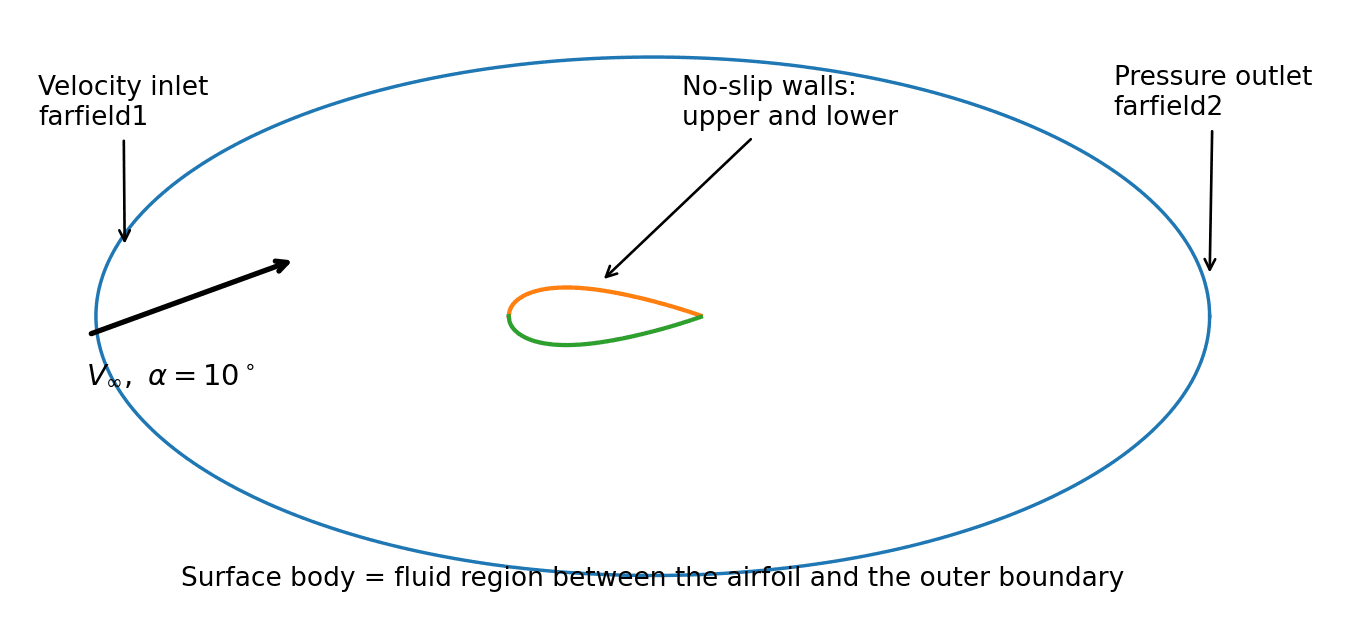

The domain is the region between the aerofoil surface and an outer far-field boundary placed roughly 12.5 chord lengths away. That outer boundary is a numerical stand-in for infinity. The real flow extends indefinitely, so truncating it is an approximation whose adequacy has to be demonstrated rather than assumed.
Before any solver was opened, a thin-aerofoil hand calculation put lift at CL = 1.097. That number is what makes the CFD result falsifiable. Without an independent expectation, any output has to be accepted on faith.
03 / Discretisation
Designing the mesh
Mesh design is not a matter of making cells small everywhere, which is both unaffordable and unnecessary. It is a matter of spending cells where the gradients are: the leading edge, the boundary layer, the trailing edge and the wake. The mesh here contains roughly 27,000 cells.
- Boundary layer refinement
- Ten inflation layers were applied around the aerofoil with a growth rate of 1.2. They provide additional resolution normal to the wall, where the strongest velocity gradients occur.
- Local aerofoil refinement
- A sphere of influence with a radius of approximately three chord lengths was used around the aerofoil. Within that region the local element size is approximately 0.05c.
- Wake refinement
- Additional refinement was applied downstream of the trailing edge, to resolve the wake and the downstream velocity gradients it carries.
- Edge biasing
- Bidirectional edge biasing concentrates smaller elements near the leading and trailing edges, where the geometry and the aerodynamic gradients require greater resolution.
04 / Post-processing
Aerodynamic results
Each field below is checked against what the pre-analysis predicted, rather than just described.

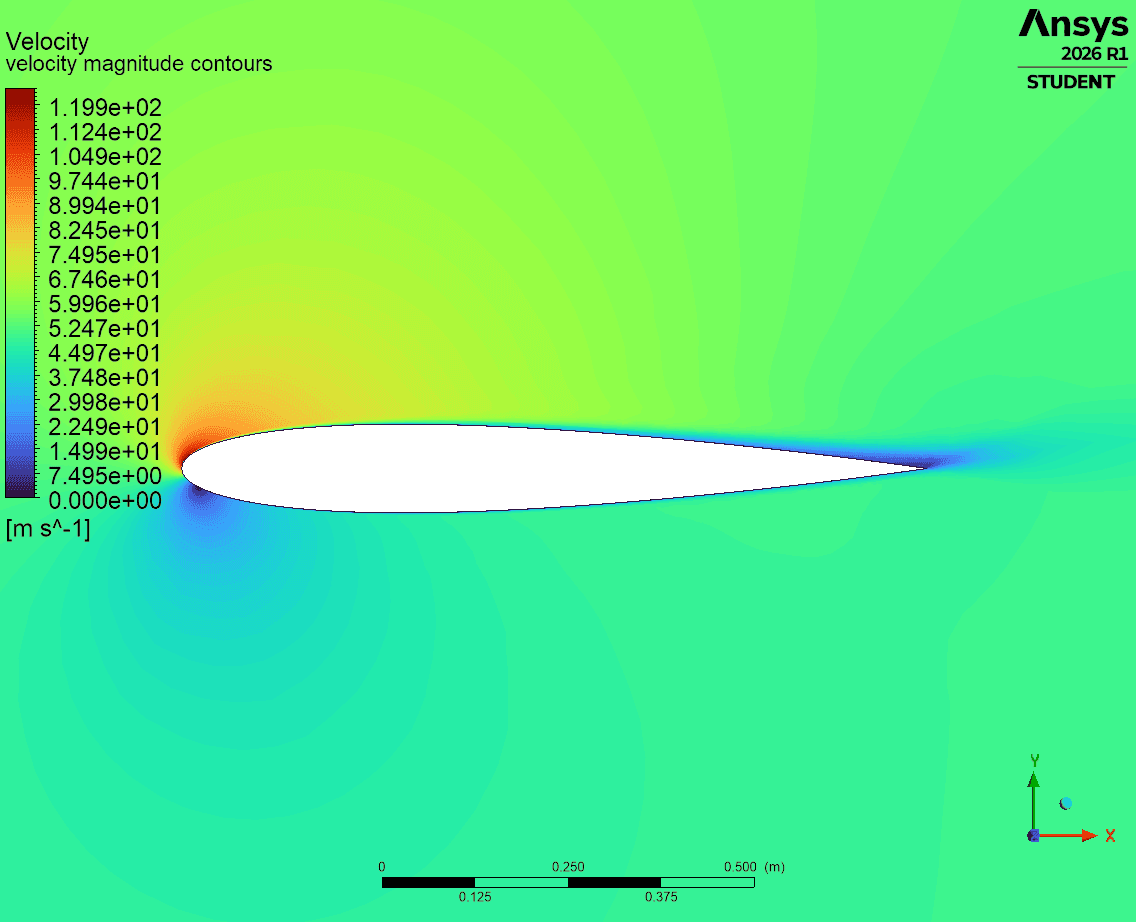

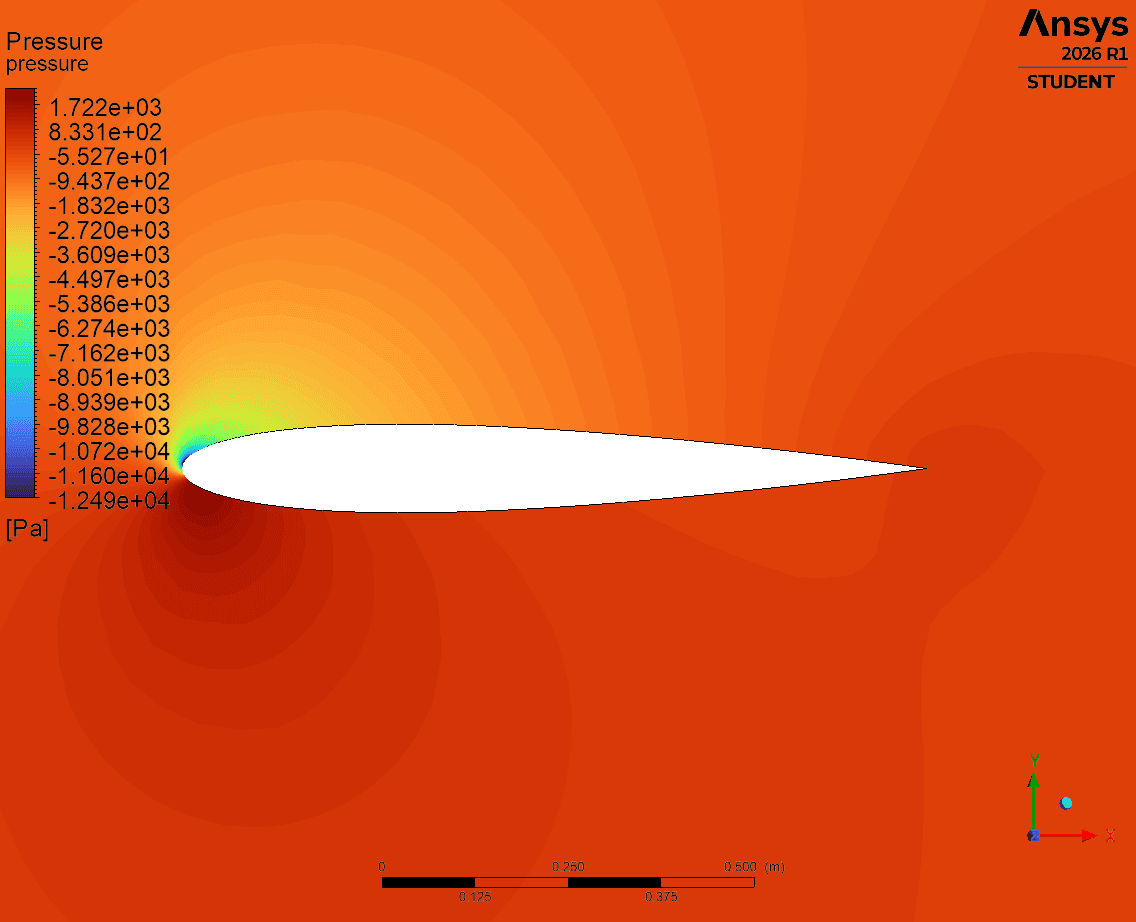

Velocity magnitude

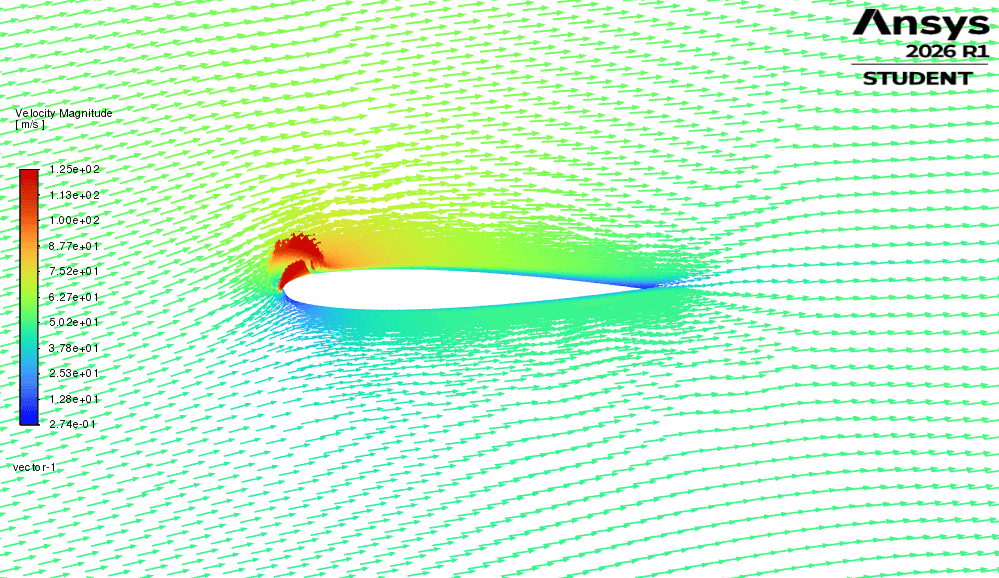

Velocity vectors

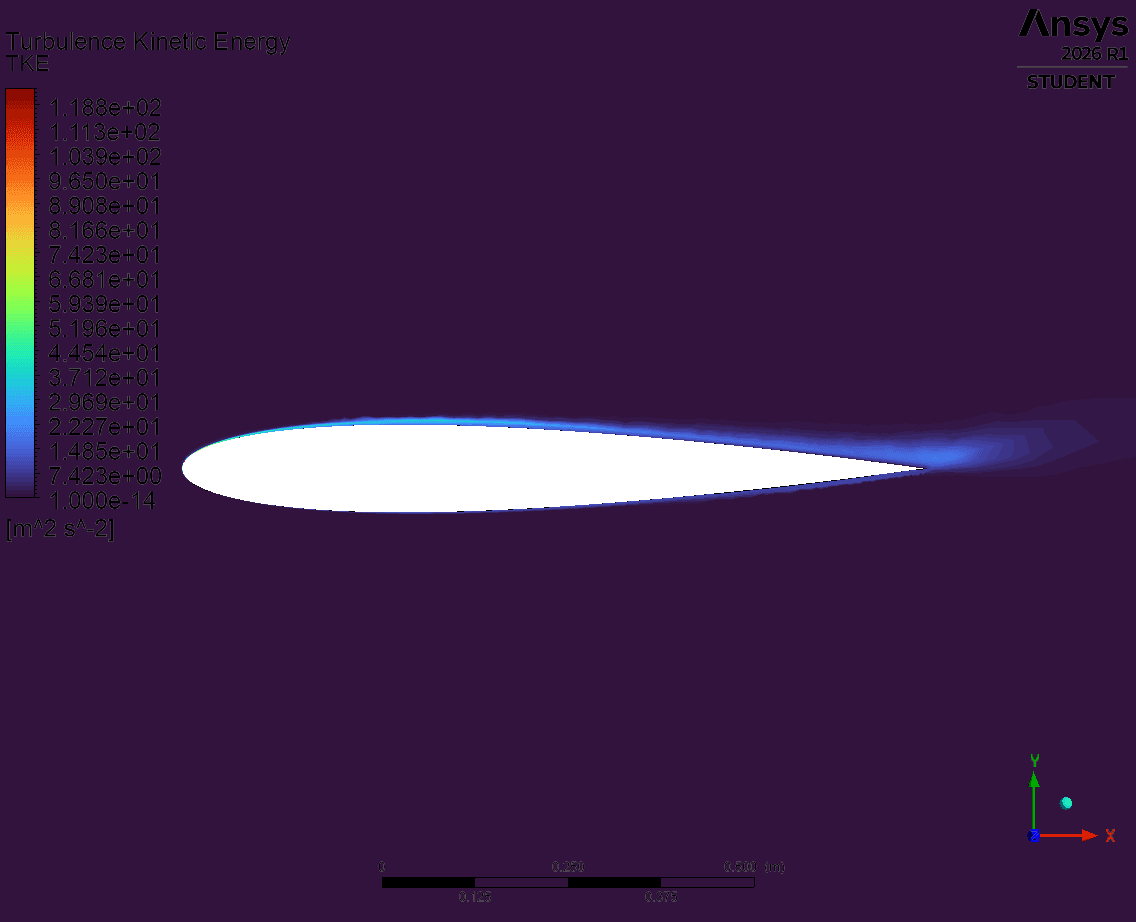

The turbulence field is the most diagnostically useful of the four plots, and the one most often skipped. It isolates the boundary layer as a thin high-k sheet, thickening toward the trailing edge and shedding into the wake, which is a direct picture of where turbulent momentum transport is happening.
It also works as a visual mesh check. Turbulence production peaks where mean shear is greatest, very close to the wall. If the near-wall mesh is adequate, that appears as a sharp, well-defined sheet. If it is too coarse, the peak smears across cells and the sheet looks diffuse, a visual symptom of the same resolution problem the y⁺ audit quantifies.
05 / V&V
Verification and validation
- Mass conservation. Normalised imbalance of order 10⁻⁷ of the incoming flow.
- Iterative convergence. Residuals driven to ≈10⁻⁶, with flat force monitors rather than residuals alone.

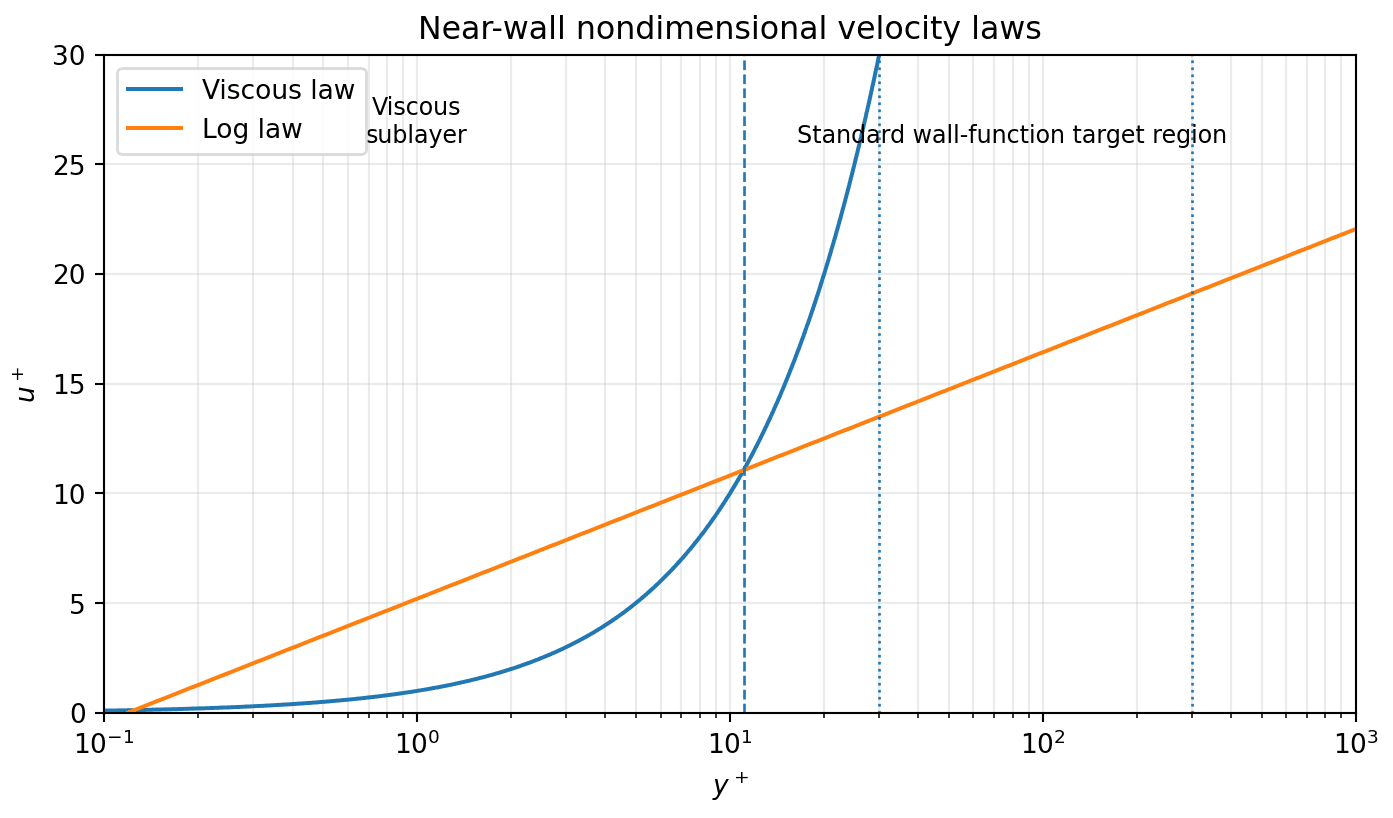

- Near-wall audit. The computed y⁺ distribution checked against the range the chosen wall treatment actually requires, rather than assumed.
- Domain and grid independence. Set out as a controlled six-case verification matrix, one variable changed at a time, each case with a stated acceptance criterion, using Richardson extrapolation and the grid convergence index.

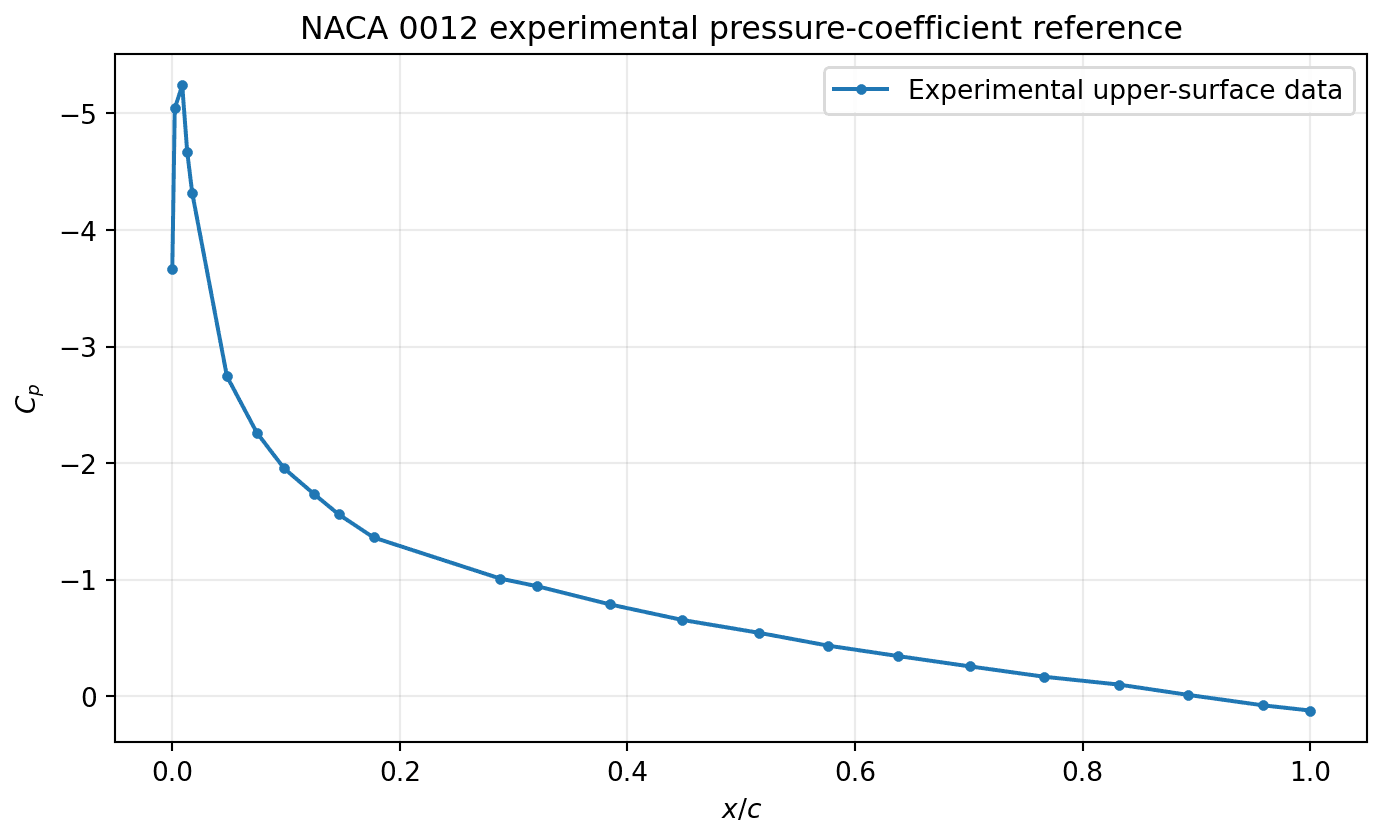

Validation compares the predicted surface pressure distribution against the NASA NACA 0012 resources (Gregory & O'Reilly for surface pressure, Ladson for force coefficients) at matched Reynolds number and incidence. The computed Cp distribution overlaps this experimental data closely across the full chord.
The integrated lift follows at CL ≈ 1.06 against an experimental 1.07 to 1.08, about 1.4 % low, and against the thin-aerofoil hand calculation of 1.097 made before any solver was opened.
Matching the full Cp distribution is a stronger claim than matching lift alone. An integrated coefficient can agree through cancellation between two compensating errors, whereas a point-by-point match across the chord cannot happen by accident. The Cp distribution is also the aerodynamic loading itself, so it is the quantity the structural side of an FSI analysis consumes.
06 / Multiphysics
Wind turbine: one-way fluid-structure interaction
The main study couples two physics domains: the output of a rotating-frame CFD solution becomes the load input to a static structural analysis. That is how aeroelastic sizing work is normally organised, and it introduces a class of error no single-physics analysis has, namely load transfer between non-matching meshes.
The rotor is solved in a rotating reference frame, so a steady solution captures rotation without a transient sliding interface. Rotational periodicity then lets one blade in a 120° sector stand for all three, cutting cost by a factor of three at the price of excluding tower shadow, wind shear and yaw.

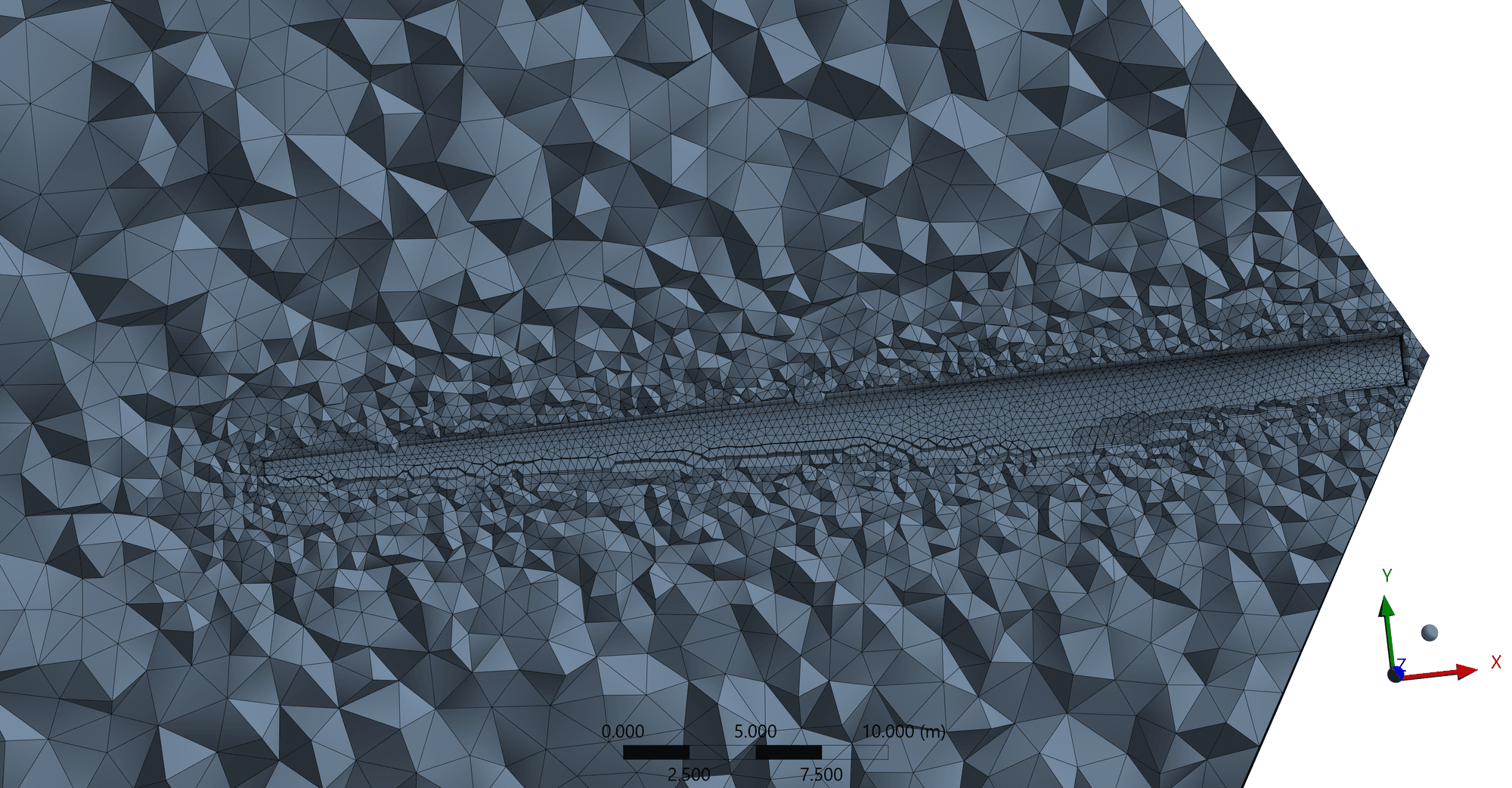

The sector mesh at the top of this page is that domain: one blade, 120° of azimuth, with the periodic faces standing in for the two blades that are not meshed.

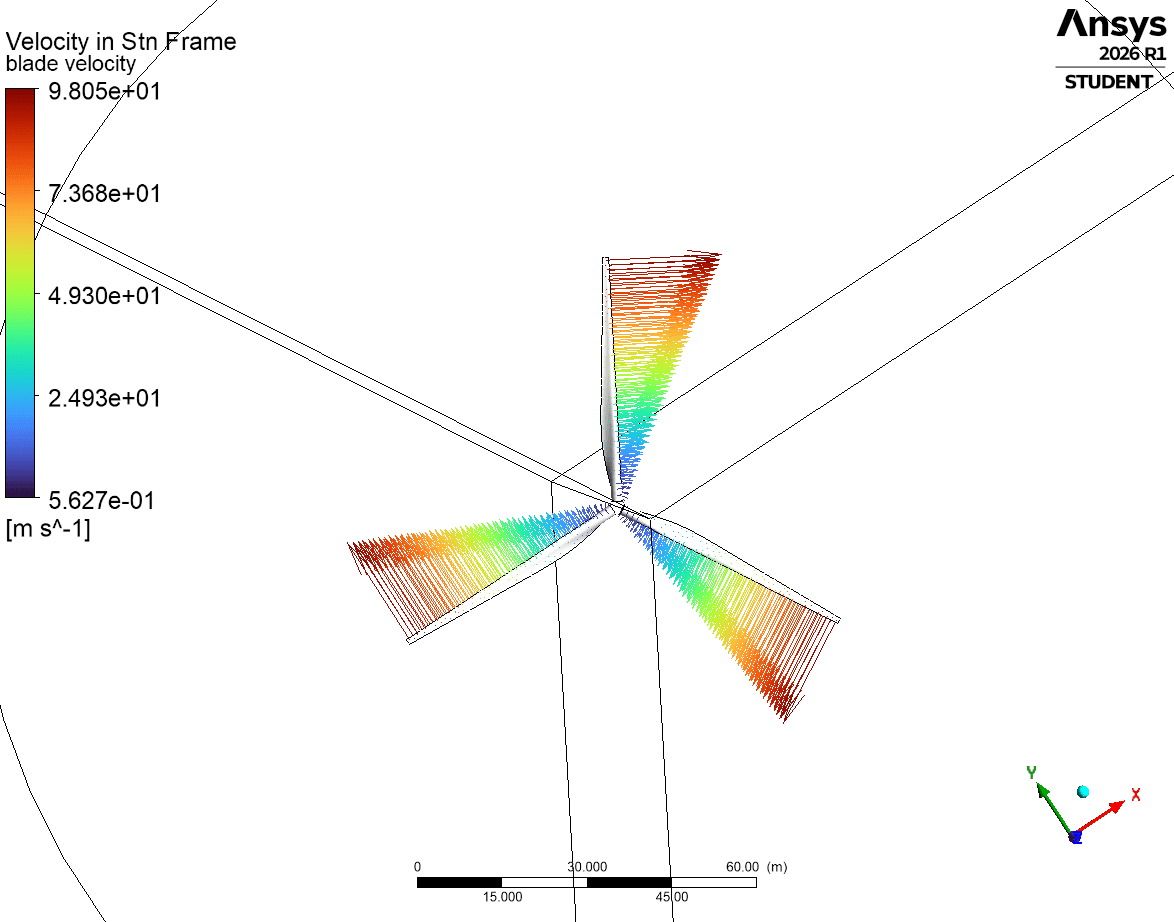

The first check is kinematic. Blade velocity in the stationary frame reaches 98.05 m/s at the tip of the 44.2 m rotor, against 98.12 m/s from ΩR by hand. That 0.07 % agreement verifies the rotation rate, axis, units and root offset in a single number.

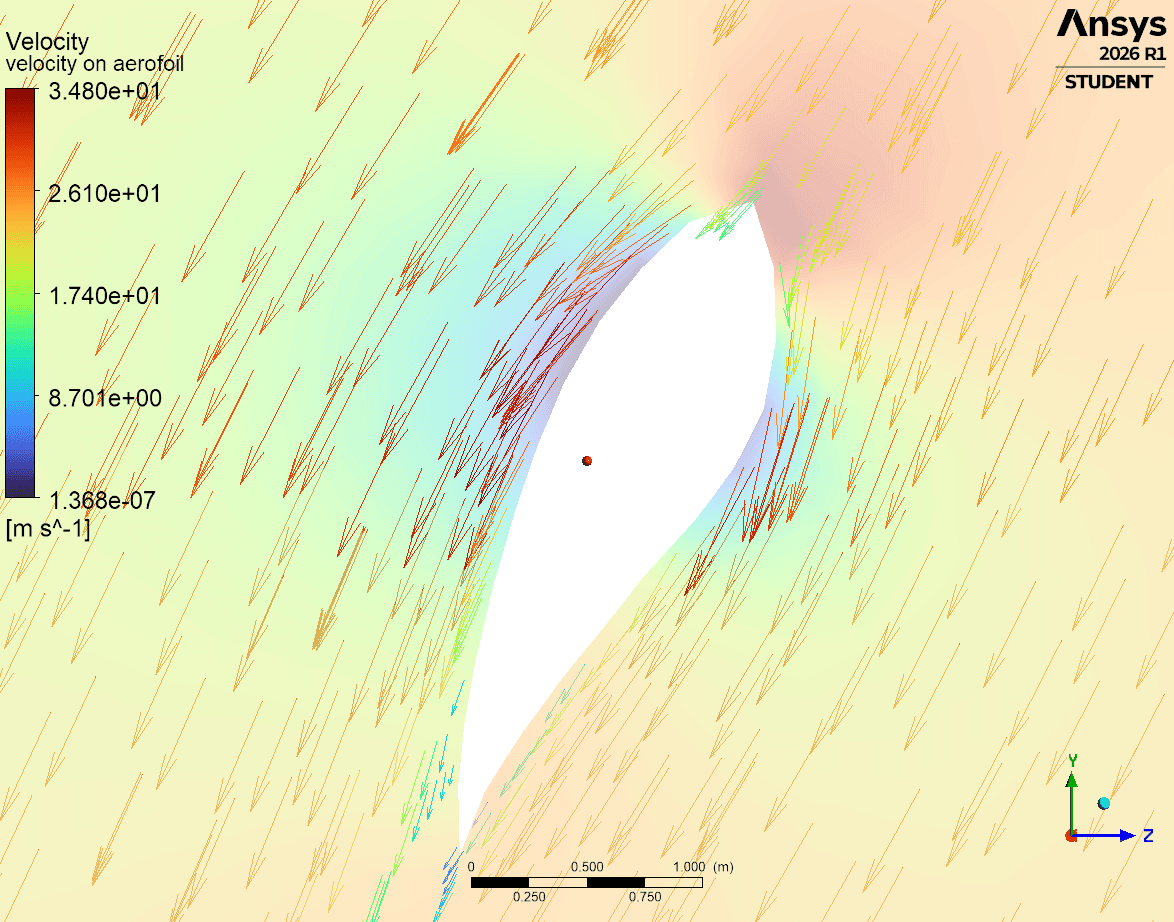

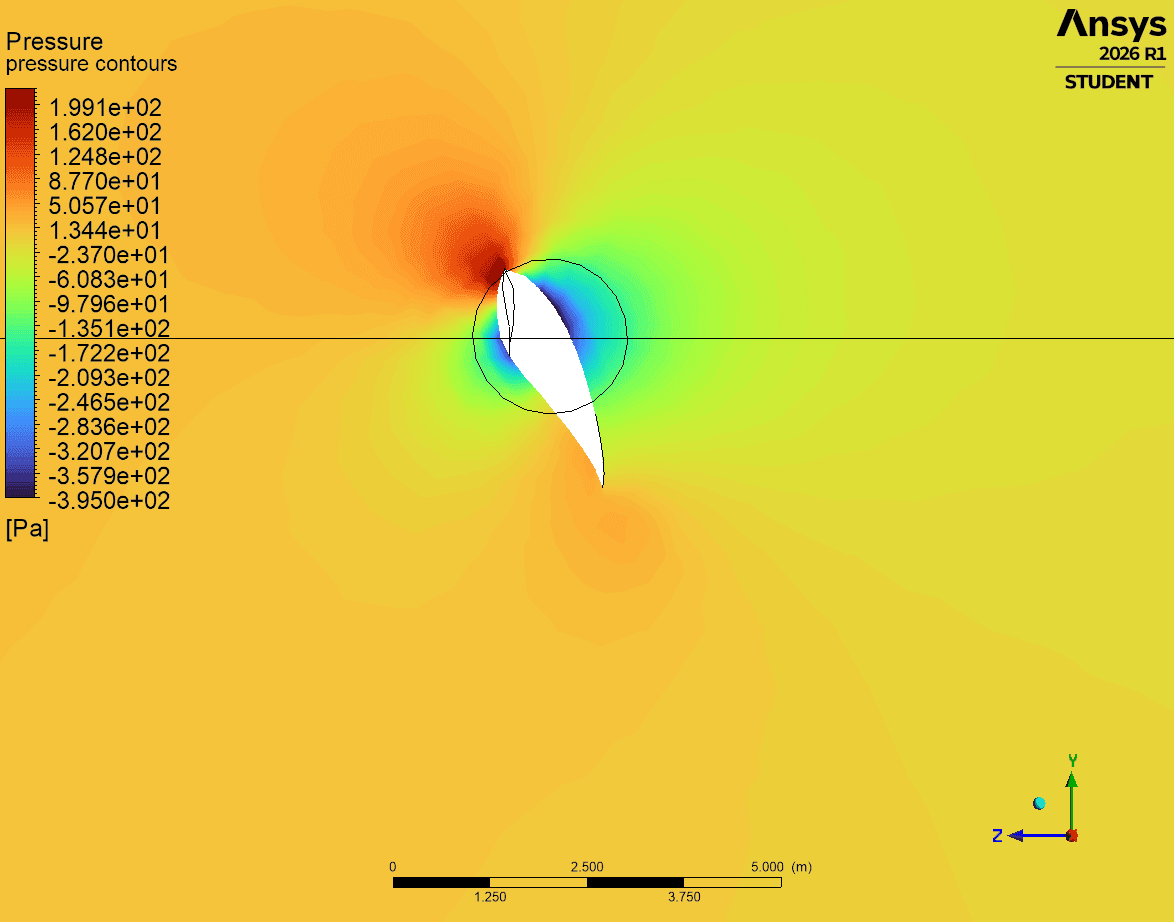

The section cut shows the aerofoil doing what the NACA 0012 study says it should, which is the point of having done that study first. The pressure difference across the section produces both the useful torque and the flapwise bending load the structure has to survive.
07 / Coupling
From pressure field to structural response
The blade is modelled as a homogenised orthotropic composite shell: outer skin plus internal spar, both tapering along the span, with longitudinal stiffness 15× the transverse. The CFD pressure field plus centrifugal inertia, with the root on a remote displacement, gives a maximum tip deflection of 0.405 m. The shape is classic cantilever behaviour, near-zero at the root and growing non-linearly toward the tip, since each span station carries the integrated moment of all load outboard of it.
The strongest check in the project is the root radial reaction. For a rigidly rotating mass distribution, the total radial force reduces exactly to mΩ²r_cm regardless of how the mass is distributed. With a 22,473 kg blade and centre of mass at 14.232 m, that gives 1,576.3 kN by hand against 1,578.1 kN from ANSYS, a difference of 0.116 %. One number simultaneously verifies the mass, density, centre of mass, angular velocity, centrifugal load implementation and reaction extraction.
Tip deflection matters twice over. It is a design-driving constraint on real turbines, since the blade must not strike the tower, and it decides whether one-way coupling was legitimate in the first place. At 0.92 % of rotor radius, the assumption looks defensible at this operating point.
08 / Engineering judgement
Limitations, stated plainly
The repository reports what the model cannot say with the same prominence as what it can:
- The power coefficient is not converged. Cp ≈ 0.141 sits well below the 0.30 to 0.45 a real machine of this class achieves, and the refinement evidence shows it still moving at 7.7 million cells. It is a coarse-mesh number rather than a performance prediction, and it is reported as such.
- No experimental data exists for either half of the turbine study, so it is numerically verified and physically assessed but cannot be called validated.
- One-way coupling only. The load is that of the undeformed blade, and the change in local twist, which actually sets angle of attack, was not extracted.
- Periodic sector. No tower shadow, wind shear, yaw misalignment or transient gusts.
- Static structural only. No modal or fatigue analysis, and fatigue is what drives blade life in service.
- Von Mises against UTS is the wrong failure measure for an orthotropic composite. The ≈16 factor of safety is a scalar screen, not a strength assessment.
- Run on the ANSYS Student licence, which caps mesh size and limits boundary-layer resolution.
The complete write-up lives in the repository: methods, data, code, provenance and limitations.
github.com/Jadbadawi/aerospace-cfd-fsi
